UES Hot Melt Applicators
UES offers a wide spectrum of suitable solutions for the application of adhesive. Whether contact-free dot, or bead (single or multi), spray application, slot nozzle heads, siftproof, and High volume deposit. Also High speed and energy efficient variants
The anti-adhesion coated, single or multiple module application heads from hard aluminium are robust and long-lasting.
Quickswitching air/air modules, variable gauge for bore holes, mini or individual design, solve the most diverse tasks.
The “Quick-Out” electrical quick change system reduces repair and idle periods, as well as the costs of replacement parts.
The H301 version has the following key features;

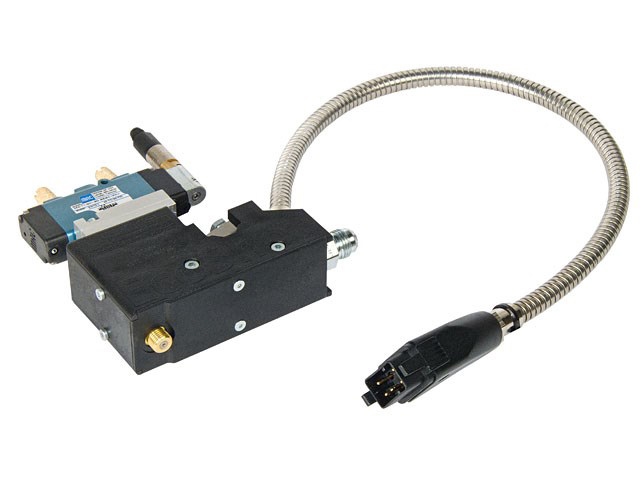

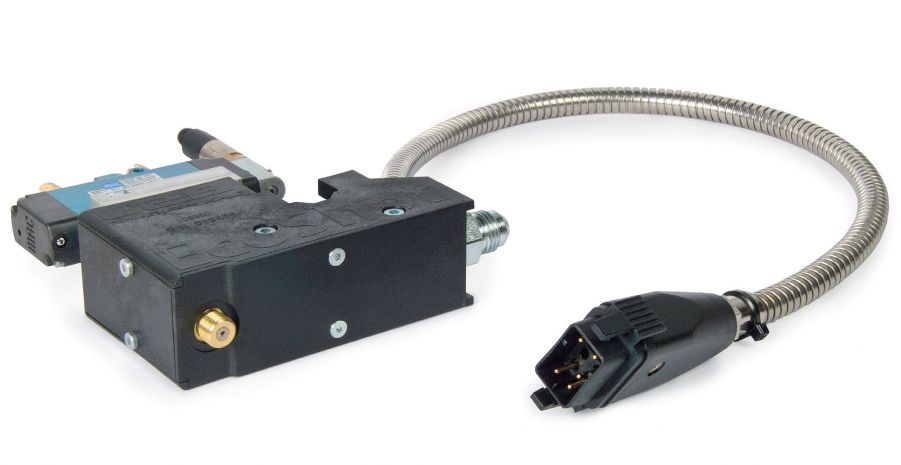

The EcoShot version has the key following features:
Energy savings of approx. 50%
Protection against contact: surface temperature reduced by more than 50%
Size: 40% smaller than comparable heads
Protection class IP 54
Simple module change
Air opening / air closing Velocity: activation starting at 3 ms Up to 7500 cycles per minute (depending from type of glue and solenoid valves) 5/2-ways solenoid valve included
With UES mini module
Improved glue hairline tear-off is available with H3000 NA Needle Seat module

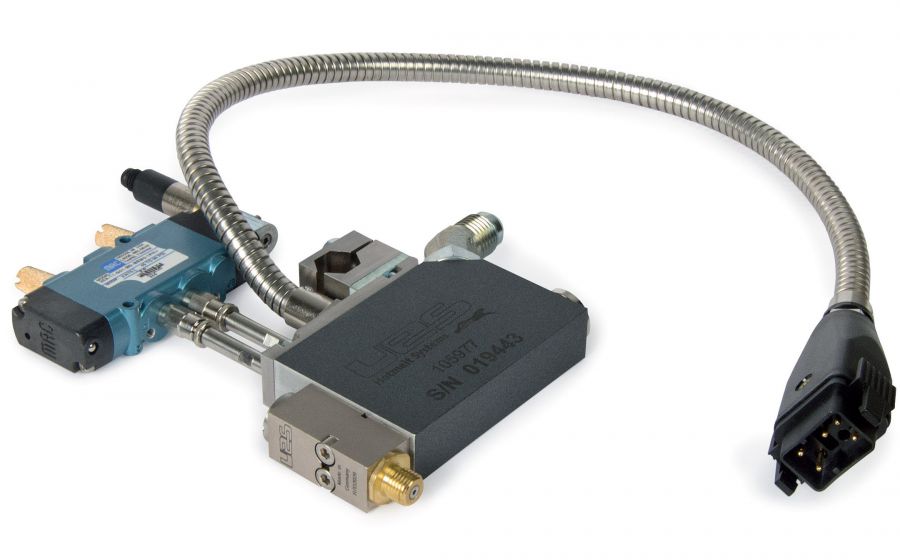

The H3000 Rapid has the following key features;
The fastest valve technology. Exact and accurately repeated application from 3 ms
Suitable for dot or bead applications
Air opening / air closing
With integrated needle seat nozzle or with screw-on nozzle
Gun holder for rapid assembly
Smallest dimensions
Protection class IP 54
Incl. solenoid valve
Special head and module variations enable the processing of even difficult special adhesives such as PUR.
Everything can be supplied connection-compatible to the commonplace glue systems on the market.

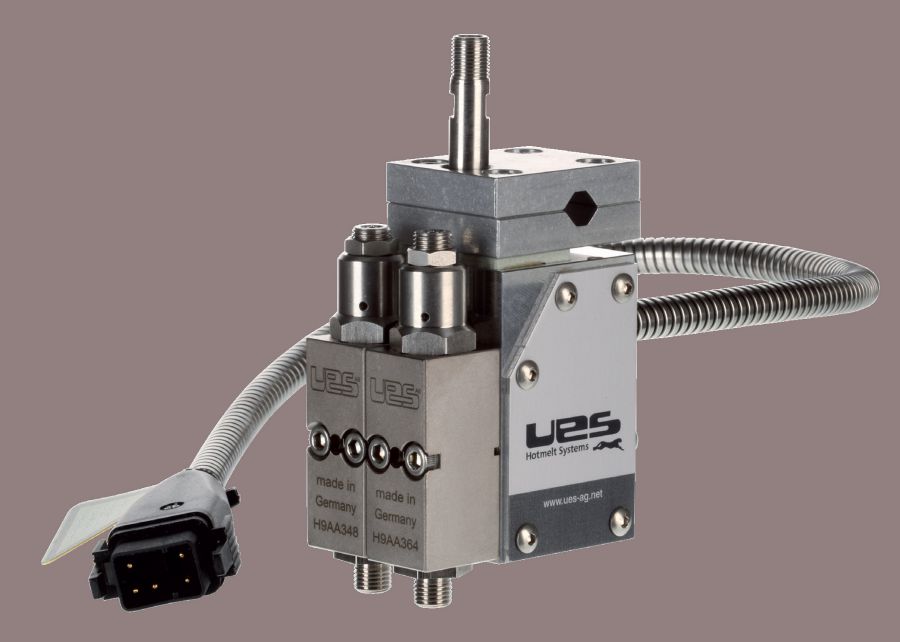

The photos show the H301 single Module, H302 double Module, the EcoShot and Rapid variants
Many more variants than those shown are readily available to complete your production needs
